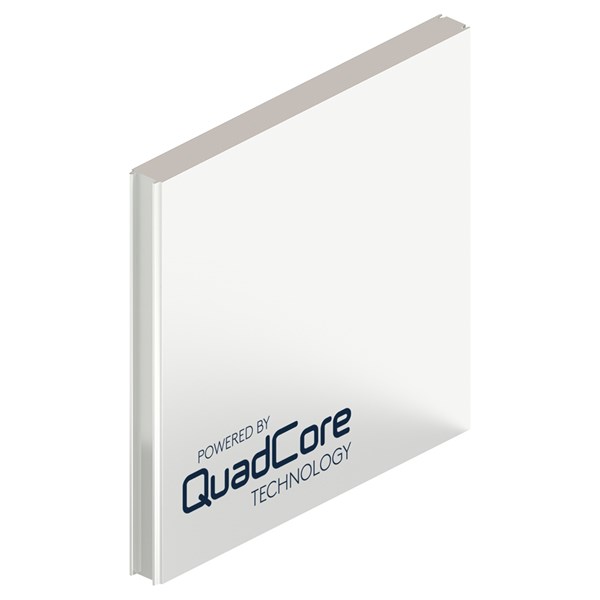

QuadCore KS110CTF Coldstore Panel

Kingspan

Kingspan KS110CTF cold store panels are designed for use within temperature-controlled and hygiene-safe environments such as food processing, freezers, pharmaceuticals, cold/chill-store and cleanrooms. Available in 4 distinct profiles. Suitable for internal walls and ceilings, including "box within a box" applications.

Wall panel Sandwich panel Facade panel Thermal insulated facade panel Wall insulation

Please click on "Offer Request" button below to send your offer and detailed information request to the company for the QuadCore KS110CTF Coldstore Panel product.

Offer Request Add to Panel

The QuadCore Coldstore Panel Series consist of a range of insulated panels and systems for use in cold stores, ambient rooms, cleanrooms and food processing facilities. Suitable for internal wall and ceiling applications.
Designed for applications from -40°C to ambient.

• Cover Width: 1100 mm
• Core Thickness: 45, 50, 60, 80, 100, 120, 140, 150, 170, 200 mm
• Profiles: CS Flat (Pharmacold), Box (Izocold) , Micro-Rib (Micro-Cold)
• Smartpanel alu-chequered finish available over all profile types
• High-performance QuadCore insulation core
• Lengths: From 2.2 - 18 m (subject to transportation limitations)
• Internal temperature range from -40°C to Ambient
• Suitable for internal walls and ceilings, including "box within a box" applications

QuadCore KS110CTF Coldstore Panels are tested to:
• FM 4880 Class 1 fire rating of building panels or interior finish materials, unlimited height for thicknesses 40 –200 mm
• FM 4881 Class 1 exterior wall systems, unlimited height for thicknesses 40 –200 mm
• FM 4882 Class 1 interior wall panels in smoke sensitive occupancies (pharmaceutical manufacturing & storage areas, and food preparation & storage areas or similar occupancies) for thicknesses 40 –200 mm
