Smart Touch Panel

İnohom Smart Home Systems

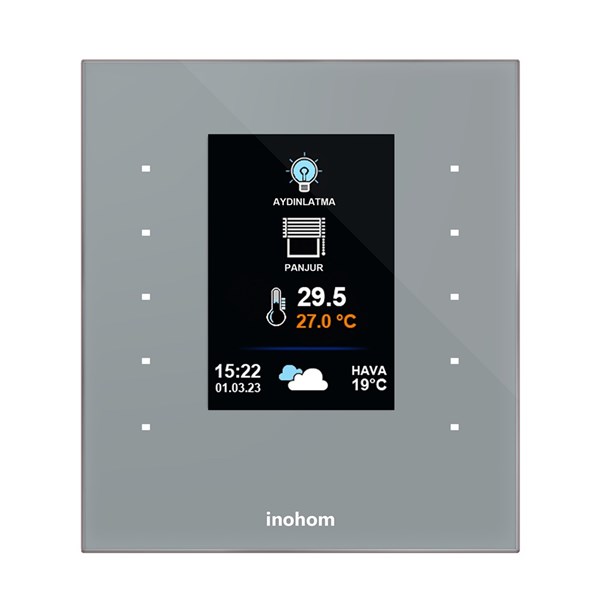

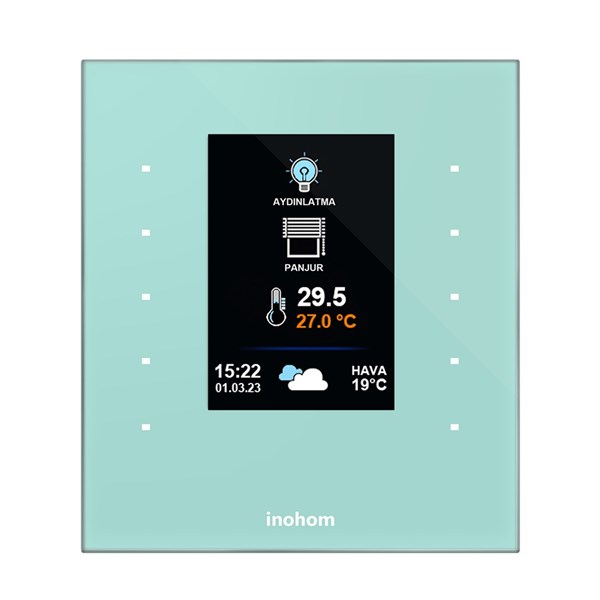

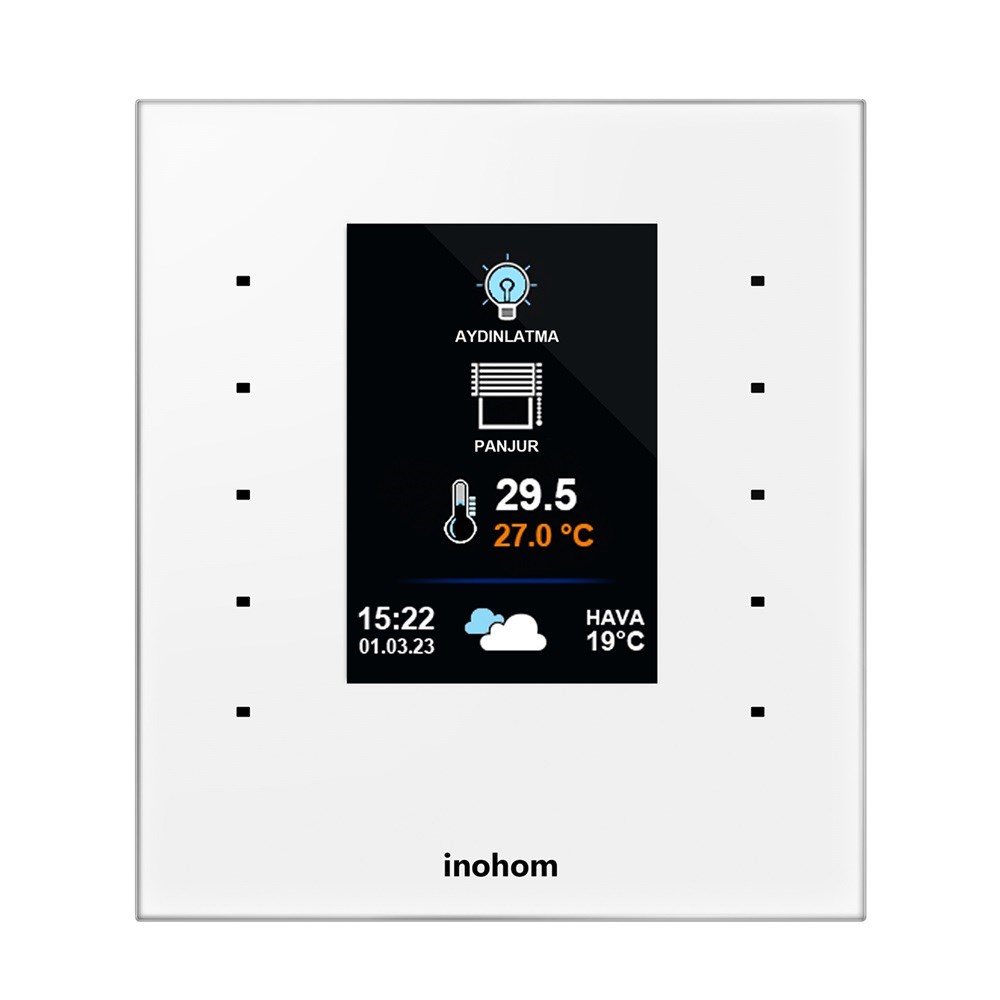

inohom Smart Touch Panel STP1710 is designed to meet all your home needs. With built-in temperature sensor, this panel has room thermostat property. This panel enables management and monitoring of illumnaton, open-close-dim control, curtain-blinds, water valve, watering, plug controls, air-conditioner degree control, central energy, natural gas turn on/off control, weather condition, date, and hour. This panel enables easy management of frequently needed illumnaton, curtain-blinds, water valve, and plug control on shortcut screen on man page. This panel has programmable 20 menu pages and you can add 4 controls on each page. Switching between pages is done with the buttons below. There are black, white, turquoise, gray and rose colour options.

Smart building system

Please click on "Offer Request" button below to send your offer and detailed information request to the company for the Smart Touch Panel product.

Offer Request Add to Panel

Housing, shopping malls, hospitals, hotels, airports, villas, public institutions, etc.

Glass

• Supply Voltage 12VDC veya 100-240VAC
• Power Consumpton 2.4W (Max)
• Outputs 4 Relay (277VAC 16A inrush 100A) Analogue Output 0-10VDC
• Sensors Temperature Sensor(-55°C, +125°C)
• Hysteress 0.5°C
• Screen 3.2" 65K Coloured
• Buttons Capacitive Touchscreen
• Communication RF 433 Mhz
• Operating System inohom OS
• Connections 2.5mm² screwed electric terminal
• Protection Class IP20
• Operating Temperature 0 - 50°C
• Relative Humidity Max 50°C %65 Humid Environment
• Height Max 2000m
• Dimension 115mm x 125mm x 14mm
• Installation Surface Wall Mounting
• EMC Standards EN55032:2015, EN55024:2011, EN62368-1

CE Declaration of Conformity
