Smart Touch Panel Mini

İnohom Smart Home Systems

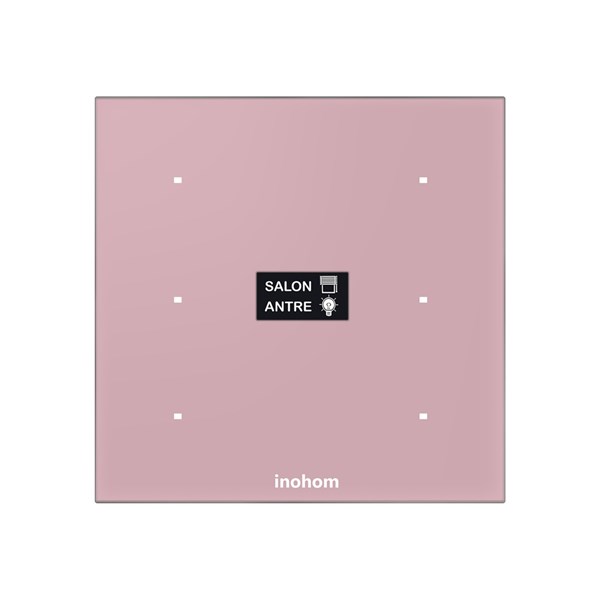

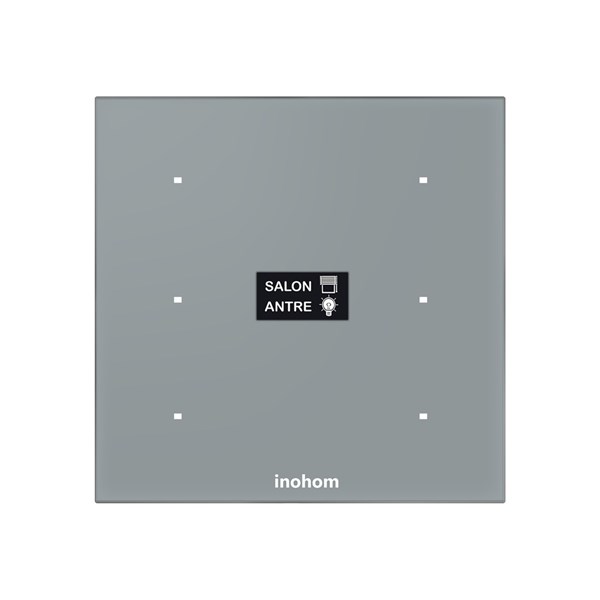

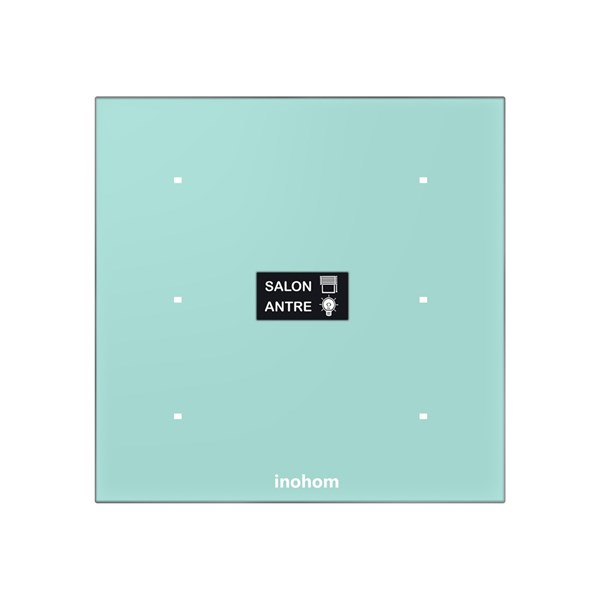

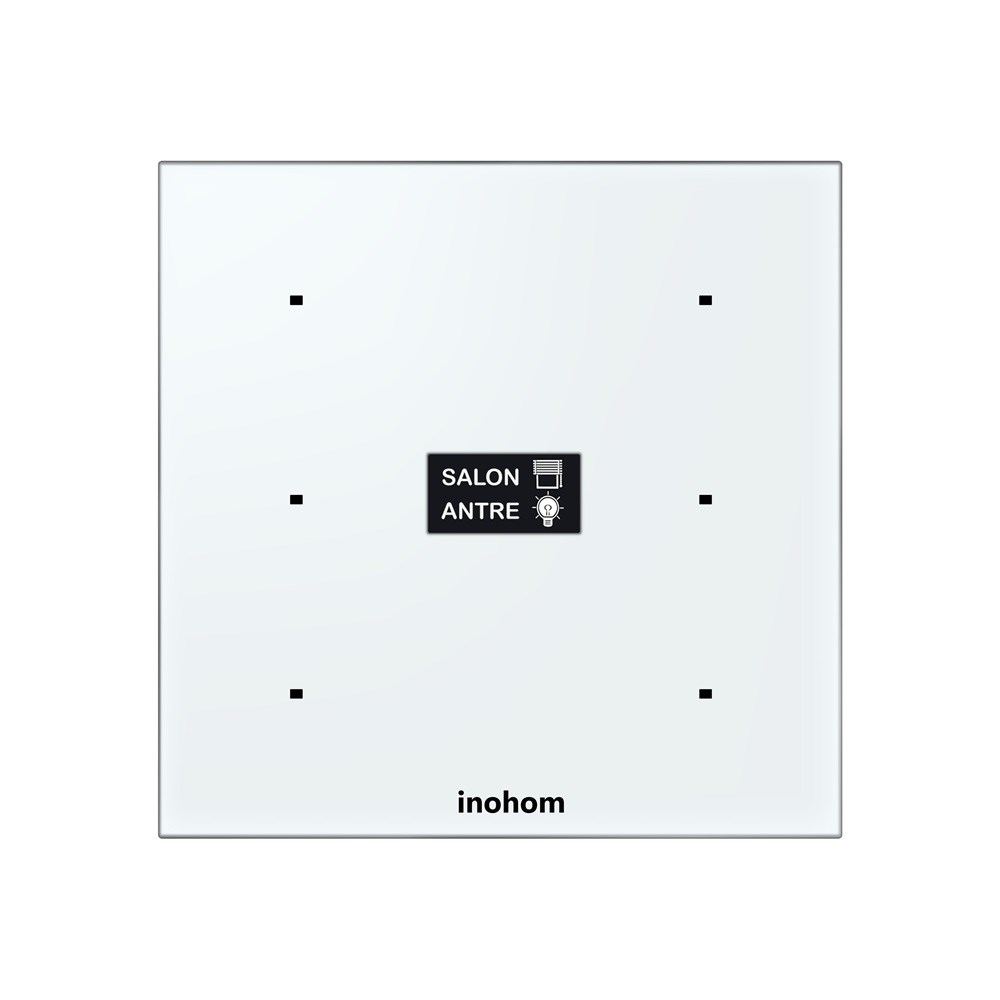

inohom Smart Touch Panel Mini STP1710 is designed to meet all your home needs. With built-in temperature sensor, this panel has room thermostat property. The product enables illumnaton on-off, dim control, curtain-blinder control, plug control, scenario activation management and monitoring. This panel has programmable 10 menu pages and you can add 2 controls on each page. With cables and wireless operation propertes, this module can work integrated with inohom smart home or independently. Sizes are designed in standard switch cases. It has 0.96" OLED screen, tempered glass surface, and touchscreen LED button. There are black, white, turquoise, gray and rose colour options.

Smart building system

Please click on "Offer Request" button below to send your offer and detailed information request to the company for the Smart Touch Panel Mini product.

Offer Request Add to Panel

Housing, shopping malls, hospitals, hotels, airports, villas, public institutions, etc.

Glass

• Supply Voltage 12VDC veya 100-240VAC
• Power Consumpton 1.2W (Max)
• Outputs 3 Relay (277VAC 16A inrush 100A) Analogue Output 0-10VDC
• Sensors Temperature Sensor(-55°C, +125°C)
• Hysteress 0.5°C
• Screen 0.96" OLED
• Buttons Capacitive Touchscreen
• Communication RF 433 Mhz
• Operating System inohom OS
• Connections 2.5mm² screwed electric terminal
• Protection Class IP20
• Operating Temperature 0 - 50°C
• Relative Humidity Max 50°C %65 Humid Environment
• Height Max 2000m
• Dimension 90mm x 90mm x 14mm
• Installation Surface Wall Mounting
• EMC Standards EN55032:2015, EN55024:2011, EN62368-1
• Design 4mm Tempered Glass Surface

CE Declaration of Conformity
