Smart Thermostat

İnohom Smart Home Systems

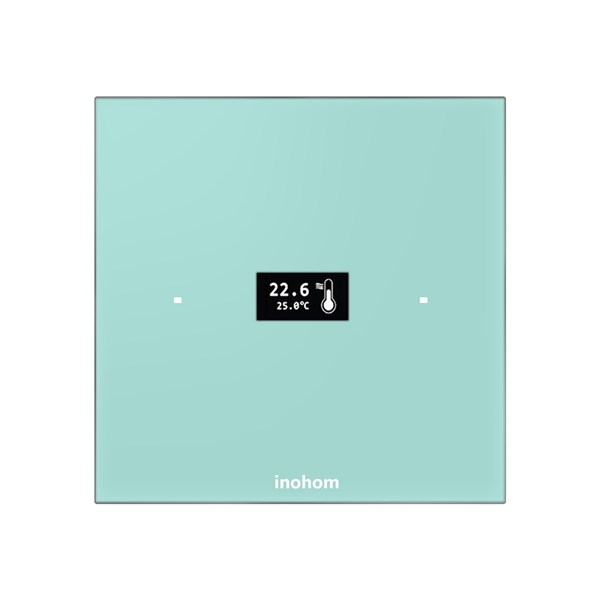

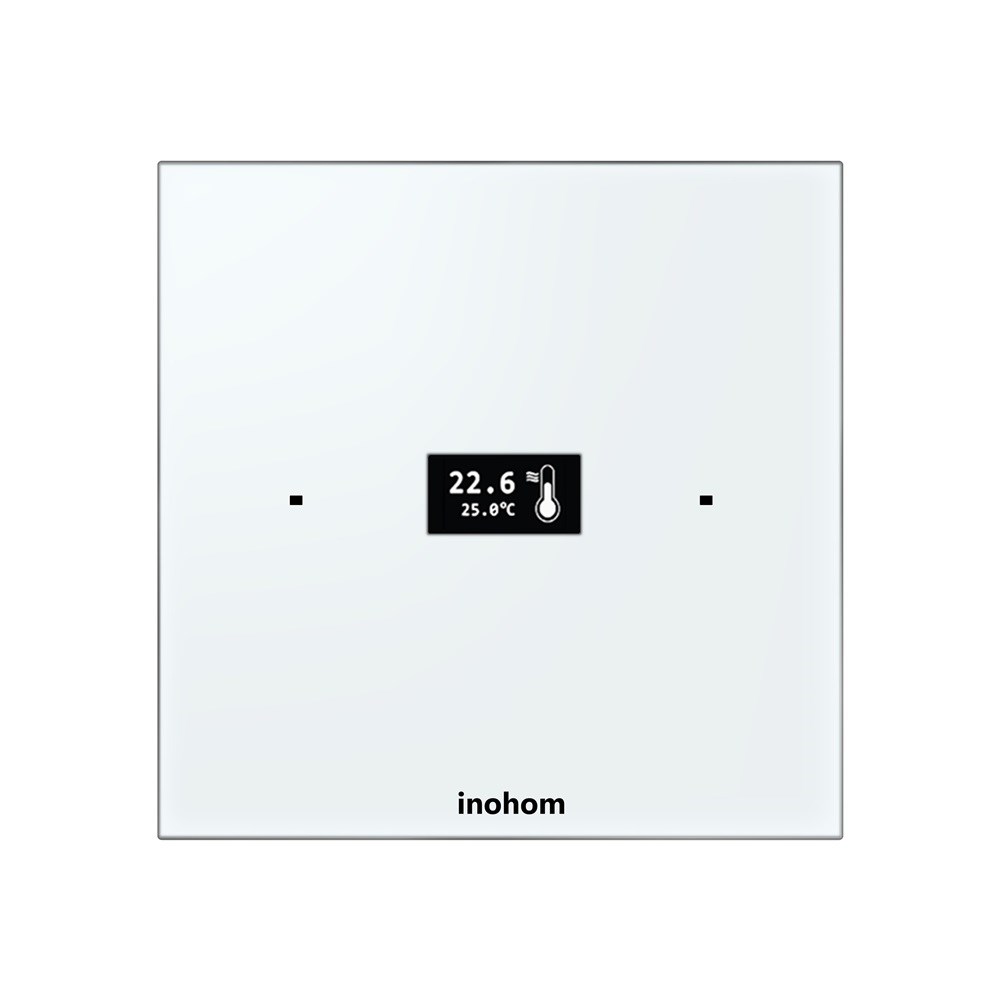

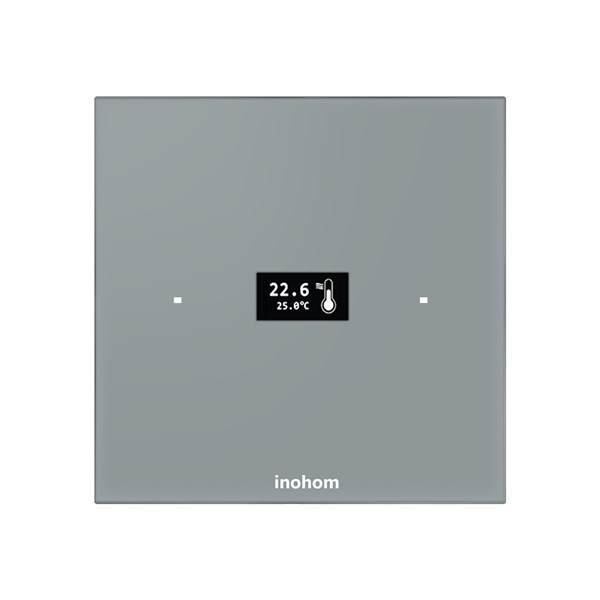

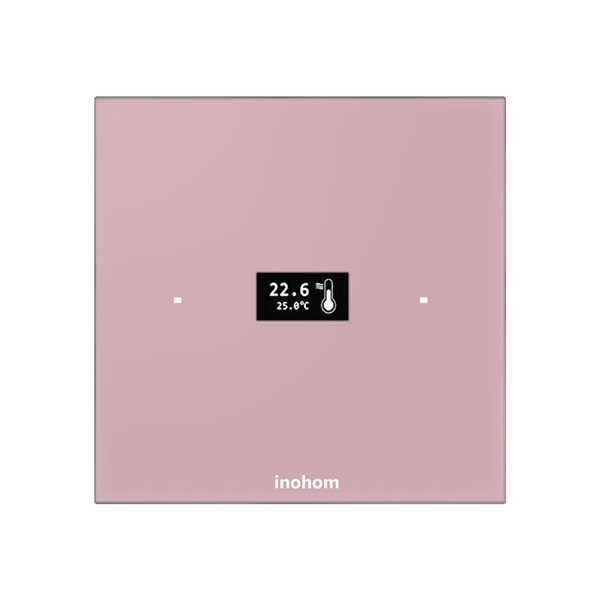

inohom Smart Thermostat ST1710 is a chic room thermostat that can make sensitive measurements with built-in temperature sensor. This thermostat can manage your combi boiler with built-in 1 relay output cable. Also, this module can wirelessly communicate with RL1710 single channel relay module connected to dry contact input of your input. With cables and wireless operation propertes, this module can work integrated with inohom smart home or independently. Sizes are designed in standard switch cases. It has 0.96" OLED screen, tempered glass surface, and touchscreen LED button. There are black, white, turquoise, gray and rose colour options.

Smart building system

Please click on "Offer Request" button below to send your offer and detailed information request to the company for the Smart Thermostat product.

Offer Request Add to Panel

Housing, shopping malls, hospitals, hotels, airports, villas, public institutions, etc.

Glass

• Supply Voltage 12VDC veya 100-240VAC
• Power Consumpton 1.2W (Max)
• Outputs 1 Relay (277VAC 16A inrush 100A)
• Sensors Temperature Sensor(-55°C, +125°C)
• Hysteress 0.5°C
• Screen 0.96" OLED
• Buttons Capacitive Touchscreen
• Communication RF 433 Mhz
• Operating System inohom OS
• Connections 2.5mm² screwed electric terminal
• Protection Class IP20
• Operating Temperature 0 - 50°C
• Relative Humidity Max 50°C %65 Humid Environment
• Height Max 2000m
• Dimension 90mm x 90mm x 14mm
• Installation Surface Wall Mounting
• EMC Standards EN55032:2015, EN55024:2011, EN62368-1
• Design 4mm Tempered Glass Surface
