Most people exposed to fire do not die from burning, but from smoke. The smoke caused by the fire creates a life-threatening situation by covering all rooms and spaces within minutes. With the inhaled smoke, vision loss occurs due to toxic poisoning, focusing decreases and sensory loss occurs. Therefore, the smoke prevents timely escape. To prevent this, evacuation systems prevent smoke from accumulating in the space by ensuring that the smoke is evacuated without cooling the fire. Thanks to the smoke-free air provided, the necessary clean air for survival is provided, as well as the panic and anxiety caused by the smoke are prevented. In the places where the smoke is evacuated, it is easier for the fire brigade to intervene and to control and extinguish the fire. Natural smoke evacuation is provided by aerodynamic openings created in the roof. Smoke evacuation flaps are used for these aerodynamic openings.

Smoke vent


Please click on "Offer Request" button below to send your offer and detailed information request to the company for the Smoke Evacuation Systems product.

Offer Request Add to Panel

It can be used in places where people are concentrated, such as airports, factories, shopping malls, warehouses, hotels, schools, dormitories and social facilities. It provides fire safety, natural ventilation and natural lighting solutions for industrial facilities, commercial buildings, tourism facilities, cultural centers and laboratories.

SMOKE DISCHARGE COVER MODELS
• Single Door Systems

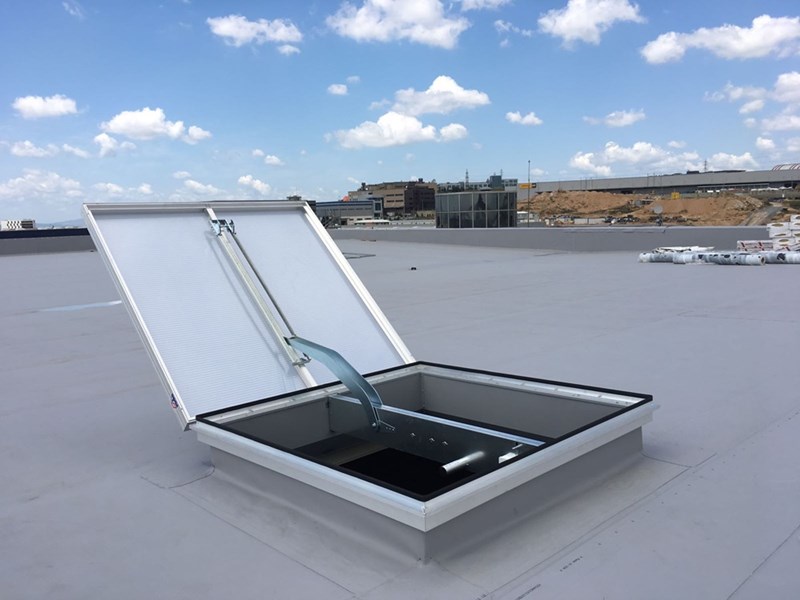

In the event of fire, it opens at an angle of 140 - 165°, providing effective smoke evacuation. It provides daily comfort ventilation thanks to the 30cm or 50cm ventilation engine on it. They can be used for daily natural ventilation of industrial facilities, in good weather conditions. The system works with pneumatic or 24V pistons.

• Double Door Systems
In the event of fire, it opens at an angle of 90° and provides effective smoke evacuation. It provides aerodynamic ventilation by opening 90° in daily natural ventilation. They are ideal systems for industrial facilities with hot processes. The system works with pneumatic or 24V pistons.

• Louver Type Systems (louver)
It opens 90° in case of fire and provides effective smoke evacuation. They are ideal systems for industrial facilities that produce heavy smoke by opening 90° in daily natural ventilation. It is especially preferred in very windy regions and geographies where high snow loads may occur. The system works with pneumatic or 24V pistons.

TROKE
• They are the first and only CE certified Smoke and Heat evacuation caps produced locally in Turkey.
• FORM is produced with experience and assurance.
• Our products are produced in high quality, passed all EN 12101-2 standard tests successfully and received CE certificate.
• All our heat and smoke extraction systems can also be used for daily ventilation.
• It is a single leaf cover system that opens at an angle of 140° or 165° in case of fire.
• Wing frame Aluminum AlMgSi alloy special extrusion profile. The base is made of galvanized sheet.
• Panels A1/A2/PC/PC Airgel etc. consists of alternative products.
• Building material flammability class According to EN13501-1 norm Wing frame and main components A1. PC panel is in B class, A1 & A2, A1 panels are in A1 non-flammability class.
• It has high aerodynamic clearance thanks to its wind reflectors.
• EN 12101-2, SL500, WL 1500, Re 1000/10000, B300, T (-25°C), DIMENSION AND OPENING ANGLE ~165°.

LAMILUX
• It has a multi-stage double seal system for high system tightness, sound insulation and heat insulation.
• Frame profiles are completely heat insulated with patented fiberglass reinforced TPI technology.
• Wide production range from 50/100 cm to 300/300 cm
• There is a glass system designed to make optimum use of daylight.
• Its exterior design has the ability to clean itself.
• CE certified in accordance with EN 12101-2, ISO 21927-2 and EN 1873 standards.
• It has been produced in accordance with the 2014 Buildings Energy Performance Directive.
• It has an environmental product declaration in ISO 14025 & EN 15804 standards.
• Compliant with fire protection preventive DIN 18234 standards
• The circular cover product design has the RED DOT DESIGN AWARD 2018 Award.
• It is a single leaf cover system that can be opened at an angle of 172° in case of fire.
• It has SUN Pro technology that protects from harmful sun rays.
• Circular doors with plastic and aluminum frames, panels

BIGHT
• It can be applied to the roof and facade models of all types of buildings.
• When using opal polycarbonate or aerogel filled panels, energy saving is achieved with natural lighting that does not dazzle.
• All profiles are made of high-strength aluminum material.
• Its resistance to weight and impacts has been proven by certificates.
• It can be produced as painted in the desired RAL code in order to adapt to the color of the building.
• Fire resistance grade is A1 class.
• It has low maintenance cost.
• The products do not contain any harmful substances and can be recycled.
• Wing frame Aluminum AlMgSi 0.5 alloy special extrusion profile. Body flange is made of stainless AlMg3 alloy, and Kaide is made of Galvanized sheet.
• Panels A1/A2/PC/PC Airgel etc. consists of alternative products.
• Building material flammability class According to EN13501-1 norm Wing frame and main components A1. PC panel is in B class, A1 & A2, A1 panels are in A1 non-flammability class.

TECHNICIAL SPECIFICATIONS

TROKE
• Troke is made of 6000 series electrostatic powder coated aluminum profiles and steel parts.
• EPDM seals minimize heat loss.
• The ports are maintenance free.
• It adapts to all kinds of roofs with inclined or flat roof bases.
• Optionally, the Troke can be equipped with fall arrest grilles that meet safety standards.

LAMILUX
• It has 172° Cover Opening Angle for Smoke Evacuation.
• The double-walled dome SUN Pro has the feature of protecting from Harmful Sunlight.
• Glass fiber reinforced Sound insulation 24 DB
• Cover frame: It has a special leak-proof structure with a drainage system that can easily drain water in heavy rain and storms.
• With TIP technology, the profiles are thermal bridge-free and completely insulated.

BIGHT
PHOENIX
• Dimensioning flexibility, design up to 7.5 m2 is possible on flat roofs.
• Suitable for daily ventilation (full ventilation at 90° ventilation position)
• The quality is guaranteed by performing on-off durability tests that are repeated 10,000 times for ventilation and 1000 times for smoke evacuation.
• High aerodynamic efficiency and quality-low U-value; does not create a greenhouse effect indoors.
• Thanks to the transparent plates with 80% light transmittance, it illuminates the interior with natural daylight with zero energy.
• It can be easily mounted on all roof and wall constructions.
• Length x Width mm dimensions; It can be manufactured in desired dimensions from 500 x 500 mm to 2500 x 3000 mm.

SMOKEJET
• It can be mounted on walls from 30 degrees to 90 degrees slope, as well as ideal for roofs.
• Suitable for daily ventilation, even in windy weather.
• Only one actuator per unit is sufficient.
• It has high aerodynamic efficiency. (Aa value)
• Channels inside the louver blades transmit rain water to the lateral drainage channel and prevent it from entering the building.
• It works with the signal it receives from the smoke sensor or the central alarm system in case of fire.

VENTURI
• Ideal for flat and pitched roofs with openings up to 2 x 2 meters.
• Suitable for daily ventilation.
• Its quality is guaranteed by performing on-off endurance tests that are repeated 10,000 times.
• It has high aerodynamic clearance.
• Dark wing alternative is available for applications where the harmful effects of daylight are not desired.
• It has a maintenance-free design.
• Safely opens and closes.
• Suitable for flat roof mounting (up to 15° roof spacing).
• It is produced in accordance with fire classification A1.
• VenturiSmoke is made of aluminum alloy AlMg3, AlMgSi05F22 and steel parts.
• EPDM gaskets minimize heat loss.
• All pivot points are maintenance free.
• VenturiSmoke can be equipped with fall arrest grilles that meet the fall rate according to safety standards (optional)
• They are pre-assembled and ready-to-use or modular designed systems.

FIREFIGHTER
• Suitable for daily ventilation (full ventilation with doors in 90° position)
• High sound absorption up to 56 dB
• By performing on-off endurance tests that are repeated 10,000 times; robustness, functional design and high quality are guaranteed. Heat exposure and snow load endurance tests have been carried out and documented.
• High aerodynamic efficiency and quality-low U-value; does not create a greenhouse effect indoors.
• The double-walled mounting frame provides easy, fast and inexpensive insulation. The hinges are maintenance free.
• Efficient rain water drainage is provided by means of central drainage channels.
• It is the most appropriate solution in projects where high standards and harsh conditions are involved in the fight against smoke.
• It can be applied on all roof types. (flat roof, pitched roof, closed roof, window-covered roof, north roof, recessed ceiling lighting)
• It is the most suitable system solution for smoke fighting in places where sound and heat insulation is required such as theatres, movie theaters and laboratories.

MEGAPHOENIX
• MEGAPHOENIX, which provides multi-functional ventilation, evacuates hot air with its double cover system that works independently of each other. It provides ventilation even in rainy weather with its pneumatic or electric side wings. The control of the top covers is provided by remote-controlled pneumatic pistons or electric motors.
• In the event of a fire, the smoke and heat evacuation flaps are opened automatically and manually by a heat-sensitive mechanism placed under the upper wings or by receiving a signal from the building automation, and evacuate the smoke and heat.
• Aerodynamically shaped top and inner covers are equipped with rubber gaskets for isolation. MEGAPHOENIX can be produced in a wide range of sizes up to 1,900 x 3,000 mm.
• A1 Single Wall Aluminum
• A2 Double Walled Insulation material between aluminum sheet
• PC Multiwall Polycarbonate
• Aero Lumira Filled Polycarbonate

MULTIJET
• MULTIJET is a model of the smokejet unit that provides natural ventilation (all-weather ventilation) even in bad weather conditions. The wings opening to the side can be controlled by pneumatic or electric. It provides effective ventilation in rainy weather.
• MULTIJET naturally evacuates smoke and heat. It is used as a multi-purpose ventilation system not only in horizontal roof areas but also in high pitched roofs.
• MULTIJET can be produced up to 1926 x 2966 mm dimensions.
• A1 Single Wall Aluminum
• A2 Double Walled Insulation material between aluminum sheet
• PC Multiwall Polycarbonate
• CAM 8 mm safety glass
