ABB

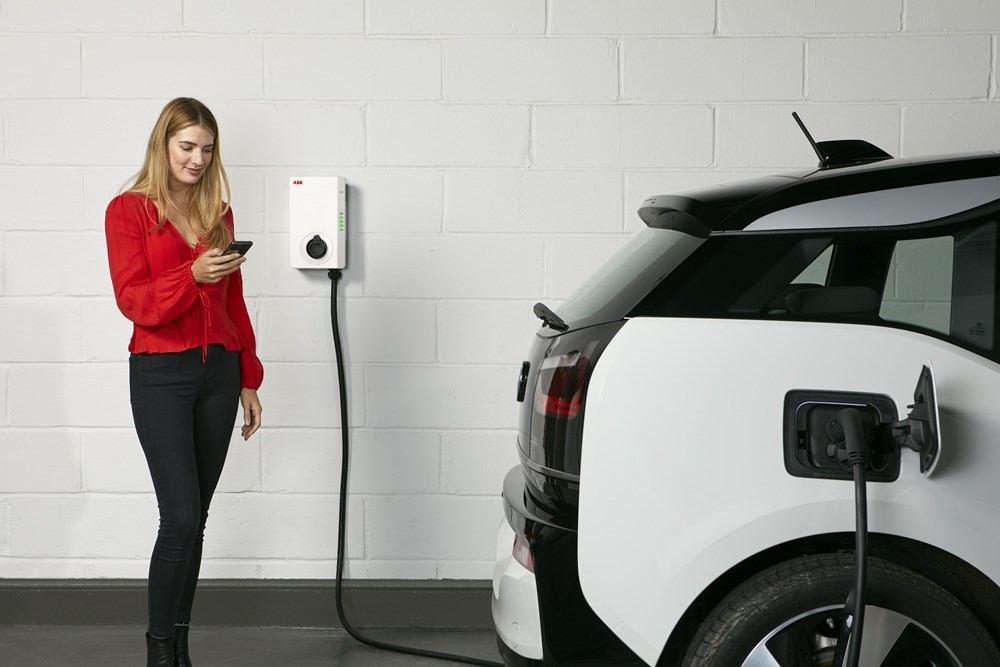

The Terra AC wallbox is the best value home charger on the market. It delivers the exceptional quality expected from the world leader in charging with a cost-effective solution. With connectivity and smart functionality, the Terra AC wallbox is built to adapt to deliver the most optimized charge today and into the future. Convenient home charging that integrates seamlessly into everyday life.


Please click on "Offer Request" button below to send your offer and detailed information request to the company for the Electric Vehicle Charging | Terra AC product.

Offer Request Add to Panel

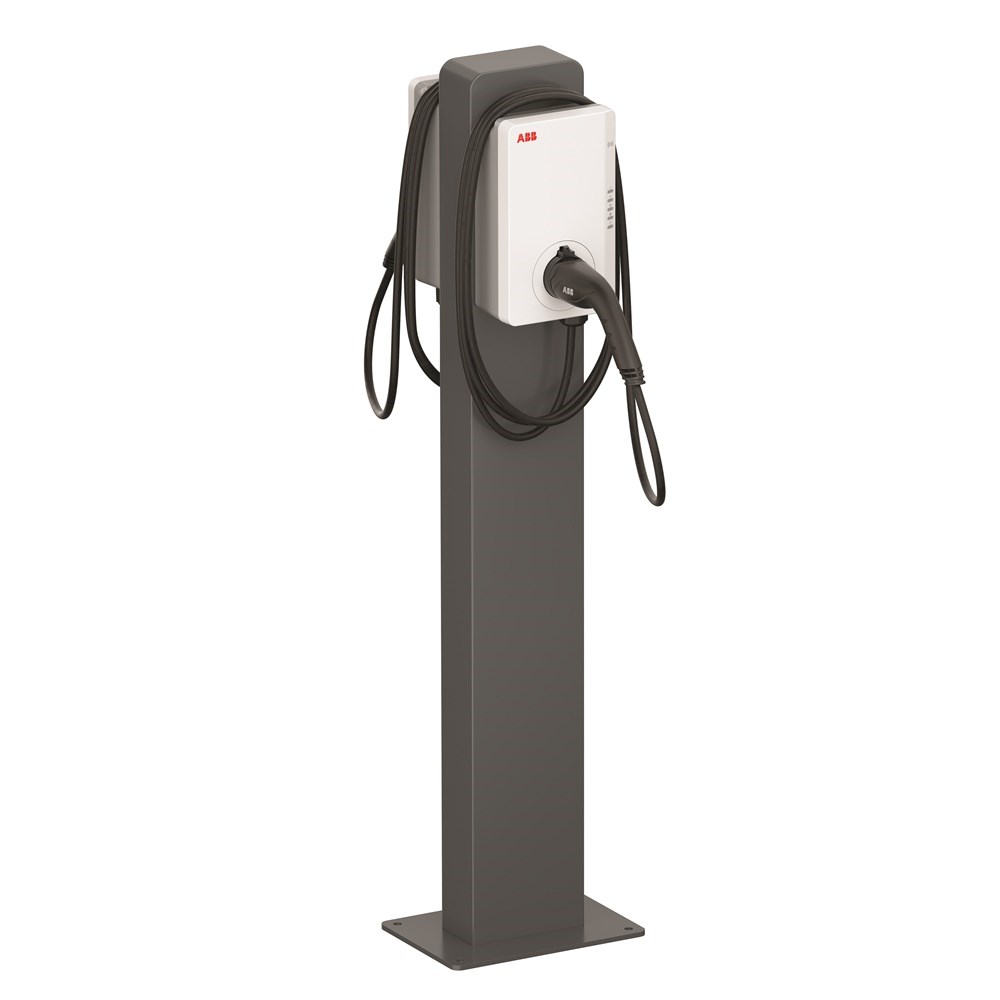

Terra AC wall-mounted charger offers tailored, smart and grid-connected charging solutions for any business or home location.

DESIGN
• IEC variants:
– Single phase up to 7.4 kW / 32 A
– Three-phase up to 22 kW / 32 A
• UL variants up to 19 kW / 80 A
• NEMA 4 and 4X enclosure
• All variants:
- IP54, IK10

INTERNAL SAFETY
• Overcurrent
• High voltage and low voltage
• Earth fault
• Protection against overvoltage
• PE (protective earth) continuity monitoring

CONNECTIVITY
• Ethernet RJ45
• Bluetooth
• Wifi
• 4G connection
• RS485/P1 for connection to energy meter
• OCPP1.6

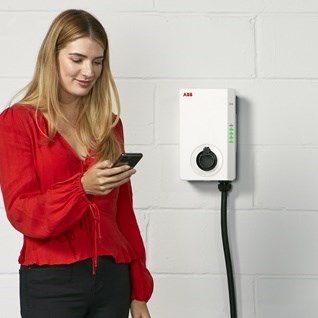

• Authentication via App or RFID
• Configuration via app or ABB web portal

CONNECTOR
• Type 1 and type 2 cable
• Type 2 socket with or without cover
• No need for extra cable holder, cable can be wrapped around the charger

FLEXIBILITY
• Built-in energy meter
• External energy meter integration setup for dynamic load management
• Ready for integration with advanced smart building energy system
